技术参数/SPECIFCATIONS
| Model 型号 | Bearing System | Rated Voltage | Operation | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level | Weight | |
| 轴承 | 额定电压 | 安规电压 | 额定电流 | 额定转速 | 风量 | 风压 | 噪音 | 重量 | ||
| Ball | Sleeve | VDC | VDC | A | RPM | CFM | mmH₂O | dBA | g | |
| HD1225H1X | ● | ● | 12 | 6.0-13.2 | 0.8 | 3800 | 115.4 | 8.7 | 43 | 140 |
| HD1225M1X | ● | ● | 12 | 6.0-13.2 | 0.5 | 3000 | 92.3 | 5.7 | 36 | 140 |
| HD1225L1X | ● | ● | 12 | 6.0-13.2 | 0.3 | 2200 | 68 | 3.4 | 28 | 140 |
| HD1225H2X | ● | ● | 24 | 12.0-26.4 | 0.45 | 3800 | 115.4 | 8.7 | 43 | 140 |
| HD1225M2X | ● | ● | 24 | 12.0-26.4 | 0.35 | 3000 | 92.3 | 5.7 | 36 | 140 |
| HD1225L2X | ● | ● | 24 | 12.0-26.4 | 0.22 | 2200 | 68 | 3.4 | 28 | 140 |
| HD1225H4X | ● | ● | 48 | 24.0-52.8 | 0.3 | 3800 | 115.4 | 8.7 | 43 | 140 |
| HD1225M4X | ● | ● | 48 | 24.0-52.8 | 0.25 | 3000 | 92.3 | 5.7 | 36 | 140 |
| HD1225L4X | ● | ● | 48 | 24.0-52.8 | 0.15 | 2200 | 68 | 3.4 | 28 | 140 |

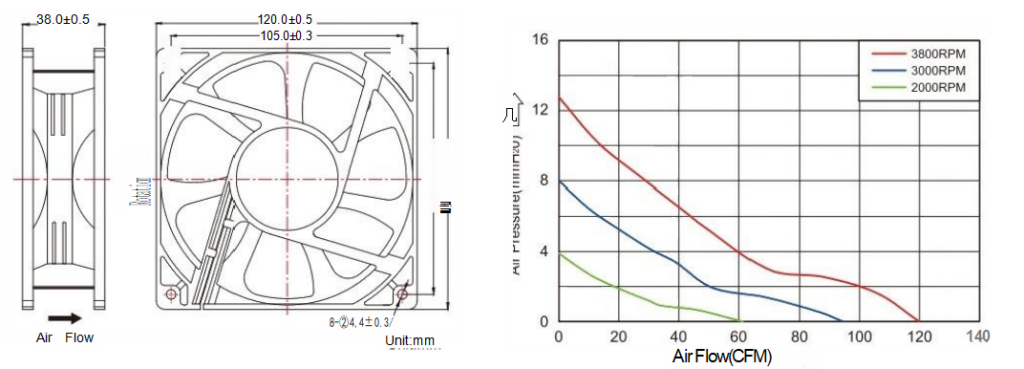

外观尺寸/DIMENSIONS DRAWING 曲线/P&Q CURVE(AT RATED VOLTAGE)
Notice:
*All readings are typical values at ratevoltage.
*The noise value is the measured value at the distance of 1 meter from the fan inlet
*Specifications are subject to change without prior notice.
*”X”in model list can be B,S,and C,meaning Dual Ball Bearing,Sleeve Bearing and 1 Ball 1 Sleeve Bearing
