技术参数/SPECIFCATIONS
| Model 型号 | Bearing System | Rated Voltage | Operation | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level | Weight | |
| 轴承 | 额定电压 | 安规电压 | 额定电流 | 额定转速 | 风量 | 风压 | 噪音 | 重量 | ||
| Ball | Sleeve | VDC | VDC | A | RPM | CFM | mmH₂O | dBA | g | |
| HD8025H5X | ● | ● | 5 | 4.0-5.5 | 0.4 | 3000 | 31.7 | 3.2 | 26 | 78 |
| HD8025M5X | ● | ● | 5 | 4.0-5.5 | 0.28 | 2500 | 27.7 | 2.4 | 24 | 78 |
| HD8025L5X | ● | ● | 5 | 4.0-5.5 | 0.22 | 2000 | 23.3 | 1.6 | 18 | 78 |
| HD8025H1X | ● | ● | 12 | 6.0-13.2 | 0.4 | 4000 | 44.2 | 5.6 | 34 | 78 |
| HD8025M1X | ● | ● | 12 | 6.0-13.2 | 0.25 | 3000 | 31.7 | 3.2 | 26 | 78 |
| HD8025L1X | ● | ● | 12 | 6.0-13.2 | 0.13 | 2000 | 23.3 | 1.6 | 18 | 78 |
| HD8025H2X | ● | ● | 24 | 12.0-26.4 | 0.25 | 4000 | 44.2 | 5.6 | 34 | 78 |
| HD8025M2X | ● | ● | 24 | 12.0-26.4 | 0.15 | 3000 | 31.7 | 3.2 | 26 | 78 |
| HD8025L2X | ● | ● | 24 | 12.0-26.4 | 0.1 | 2000 | 23.3 | 1.6 | 18 | 78 |
| HD8025H4X | ● | ● | 48 | 24.0-52.8 | 0.18 | 4000 | 44.2 | 5.6 | 34 | 78 |
| HD8025M4X | ● | 48 | 24.0-52.8 | 0.1 | 3000 | 31.7 | 3.2 | 26 | 78 | |
| HD8025L4X | ● | ● | 48 | 24.0-52.8 | 0.08 | 2000 | 23.3 | 1.6 | 18 | 78 |

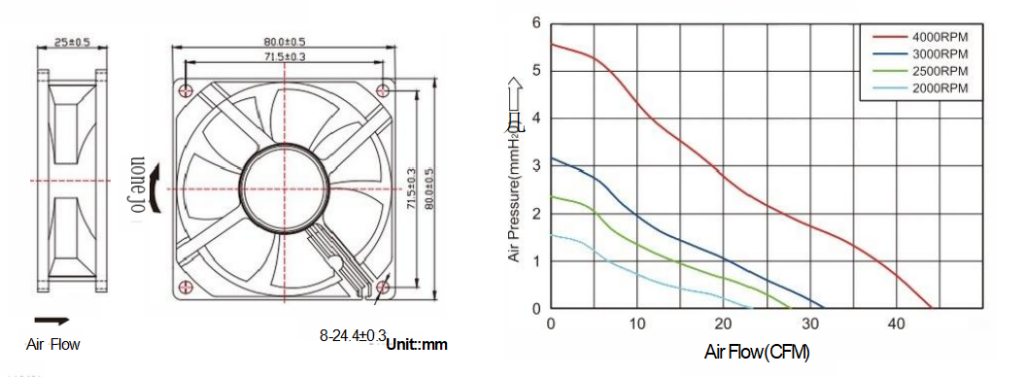

外观尺寸/DIMENSIONS DRAWING 曲线/P&Q CURVE(AT RATED VOLTAGE)
Notice:
*All readings are typical values at ratevoltage.
*The noise value is the measured value at the distance of 1 meter from the fan inlet
*Specifications are subject to change without prior notice.
*”X”in model list can be B,S,and C,meaning Dual Ball Bearing,Sleeve Bearing and 1 Ball 1 Sleeve Bearing
