技术参数/SPECIFCATIONS
| Model 型号 | Bearing System | Rated Voltage | Operation | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level | Weight | |
| 轴承 | 额定电压 | 安规电压 | 额定电流 | 额定转速 | 风量 | 风压 | 噪音 | 重量 | ||
| Ball | Sleeve | VDC | VDC | A | RPM | CFM | mmH₂O | dBA | g | |
| HD7025H5X | ● | ● | 5 | 4.0-5.5 | 0.45 | 5000 | 42.3 | 6.9 | 38 | 65 |
| HD7025M5X | ● | ● | 5 | 4.0-5.5 | 0.38 | 4000 | 34.4 | 4.5 | 31 | 65 |
| HD7025L5X | ● | ● | 5 | 4.0-5.5 | 0.3 | 3000 | 25.5 | 2.6 | 23 | 65 |
| HD7025H1X | ● | ● | 12 | 6.0-13.2 | 0.3 | 5000 | 42.3 | 6.9 | 38 | 65 |
| HD7025M1X | ● | ● | 12 | 6.0-13.2 | 0.2 | 4000 | 34.4 | 4.5 | 31 | 65 |
| HD7025L1X | ● | ● | 12 | 6.0-13.2 | 0.15 | 3000 | 25.5 | 2.6 | 23 | 65 |
| HD7025H2X | ● | ● | 24 | 12.0-26.4 | 0.2 | 5000 | 42.3 | 6.9 | 38 | 65 |
| HD7025M2X | ● | 24 | 12.0-26.4 | 0.12 | 4000 | 34.4 | 4.5 | 31 | 65 | |
| HD7025L2X | ● | 24 | 12.0-26.4 | 0.1 | 3000 | 25.5 | 2.6 | 23 | 65 | |
| HD7025H4X | ● | ● | 48 | 24.0-52.8 | 0.18 | 5000 | 42.3 | 6.9 | 38 | 65 |
| HD7025M4X | ● | ● | 48 | 24.0-52.8 | 0.12 | 4000 | 34.4 | 4.5 | 31 | 65 |
| HD7025L4X | ● | ● | 48 | 24.0-52.8 | 0.1 | 3000 | 25.5 | 2.6 | 23 | 65 |

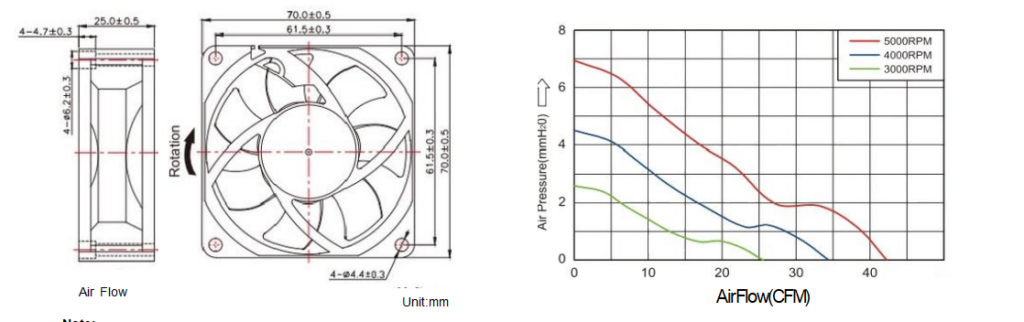

外观尺寸/DIMENSIONS DRAWING 曲线/P&Q CURVE(AT RATED VOLTAGE)
Note:
*All readings are typical values at rated voltage.
*The noise value is the measured value at the distance of 1 meter from the fan inlet
*Specifications are subject to change without prior notice.
**X in model list can be B, S, and C, meaning Dual Ball Bearing, Sleeve Bearing and 1 Ball 1 Sleeve Bearing
