技术参数/SPECIFICATIONS
| Model 型号 | Bearing System | Rated Voltage | Operation | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level | Weight | |
| 轴承 | 额定电压 | 安规电压 | 额定电流 | 额定转速 | 风量 | 风压 | 噪音 | 重量 | ||
| Ball | Sleeve | VDC | VDC | A | RPM | CFM | mmH₂O | dBA | g | |
| HE2060MB | ● | 110-240 | 90-265 | 0.80/0.40 | 2500 | 493.3 | 15.2 | 50 | 1300 | |
| HE2060LB | ● | 110-240 | 90-265 | 0.40/0.20 | 2000 | 392.8 | 10 | 44 | 1300 | |

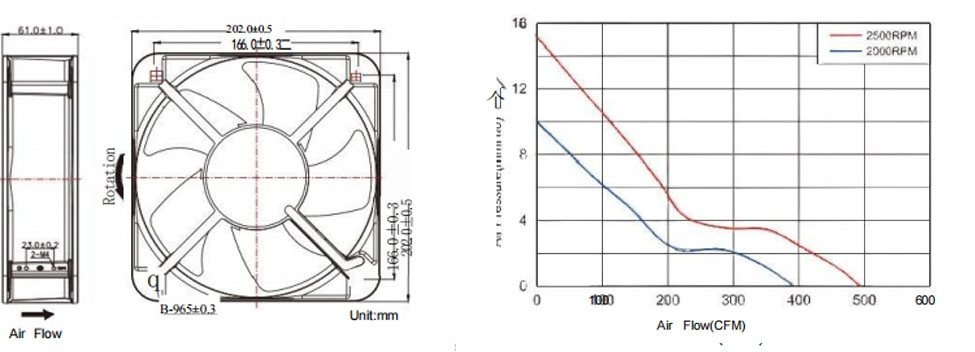

外 观 尺 寸 /DIMENSIONS DRAWING 曲 线 /P&Q CURVE(AT RATED VOLTAGE)
Note:
* All readings are typical values at rated voltage.
* The noise value is the measured value at the distance of 1 meter from the fan inlet.
* Specifications are subject to change without prior notice.
** “X” in model list can be B, S, and C, meaning Dual Ball Bearing, Sleeve Bearing and 1 Ball + 1 Sleeve Bearing.
