技术参数/SPECIFICATIONS
| Model 型号 | Bearing System | Rated Voltage | Operation | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level | Weight | |
| 轴承 | 额定电压 | 安规电压 | 额定电流 | 额定转速 | 风量 | 风压 | 噪音 | 重量 | ||
| Ball | Sleeve | VDC | VDC | A | RPM | CFM | mmH₂O | dBA | g | |
| HE1751H1B | ● | 110-120 | 90-135 | 0.7 | 3500 | 253.9 | 18.7 | 52 | 740 | |
| HE1751M1B | ● | 110-120 | 90-135 | 0.5 | 3000 | 211.8 | 13.5 | 46 | 740 | |
| HE1751L1B | ● | 110-120 | 90-135 | 0.36 | 2500 | 177.4 | 9.5 | 42 | 740 | |
| HE1751H2B | ● | 220-240 | 190-265 | 0.35 | 3500 | 253.9 | 18.7 | 52 | 740 | |
| HE1751M2B | ● | 220-240 | 190-265 | 0.25 | 3000 | 211.8 | 13.5 | 46 | 740 | |
| HE1751L2B | ● | 220-240 | 190-265 | 0.18 | 2500 | 177.4 | 9.5 | 42 | 740 | |

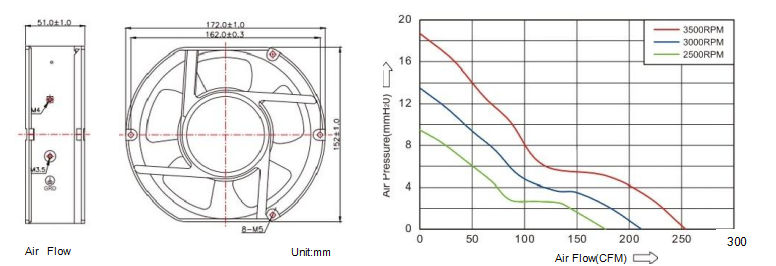

外 观 尺 寸 /DIMENSIONS DRAWING 曲 线 /P&Q CURVE(AT RATED VOLTAGE)
Note:
* All readings are typical values at rated voltage.
* The noise value is the measured value at the distance of 1 meter from the fan inlet.
* Specifications are subject to change without prior notice.
** “X” in model list can be B, S, and C, meaning Dual Ball Bearing, Sleeve Bearing and 1 Ball + 1 Sleeve Bearing.
