技术参数/SPECIFICATIONS
| Model 型号 | Bearing System | Rated Voltage | Operation | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level | Weight | |
| 轴承 | 额定电压 | 安规电压 | 额定电流 | 额定转速 | 风量 | 风压 | 噪音 | 重量 | ||
| Ball | Sleeve | VDC | VDC | A | RPM | CFM | mmH₂O | dBA | g | |
| SB9733H1X | ● | ● | 12 | 6.0-13.2 | 1 | 4000 | 22.3 | 19.7 | 44 | 85 |
| SB9733M1X | ● | ● | 12 | 6.0-13.2 | 0.75 | 3500 | 19.9 | 14 | 41 | 85 |
| SB9733L1X | ● | ● | 12 | 6.0-13.2 | 0.5 | 3000 | 16.8 | 9.9 | 38 | 85 |
| SB9733H2X | ● | ● | 24 | 12.0-26.4 | 0.6 | 4000 | 22.3 | 19.7 | 44 | 85 |
| SB9733M2X | ● | ● | 24 | 12.0-26.4 | 0.4 | 3500 | 19.9 | 14 | 41 | 85 |
| SB9733L2X | ● | ● | 24 | 12.0-26.4 | 0.3 | 3000 | 16.8 | 9.9 | 38 | 85 |
| SB9733H4X | ● | ● | 48 | 24.0-52.8 | 0.3 | 4000 | 22.3 | 19.7 | 44 | 85 |
| SB9733M4X | ● | ● | 48 | 24.0-52.8 | 0.2 | 3500 | 19.9 | 14 | 41 | 85 |
| SB9733L4X | ● | ● | 48 | 24.0-52.8 | 0.12 | 3000 | 16.8 | 9.9 | 38 | 85 |

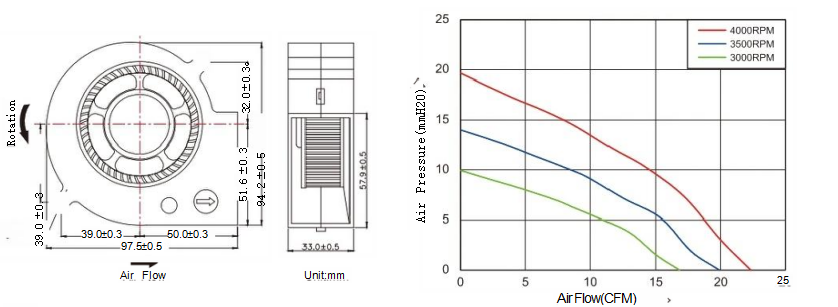

外观尺寸/DIMENSIONS DRAWING 曲线/P&Q CURVE(AT RATED VOLTAGE)
Note:
* All readings are typical values at rated voltage.
* The noise value is the measured value at the distance of 1 meter from the fan inlet.
* Specifications are subject to change without prior notice.
* “X” in model list can be B, S, and C, meaning Dual Ball Bearing, Sleeve Bearing and 1 Ball 1 Sleeve Bearing.
